EVGA Z68マザーボードは届きました! 最新のインテル® Z68 Express チップセット搭載 マザーボードにより、思いのままの PC 体験を実現。 このプラットフォームは、LGA 1155 ソケットで最も高い柔軟性とパフォーマンスを実現しCore i5 /Core i7プロセッサーを サポートいたします。そして、インテル® スマート・レスポンス・テクノロジーによって、 Solid-State Drive (SSD) の優れたパフォーマンスと従来型ハードディスク・ドライブ (HDD) の記憶容量を単一のドライブボリューム上で実現します。 インテル® スマート・レスポンス・テクノロジーは、頻繁に使うデータをSSDにキャッシュすることでOS／アプリケーションの起動の際、HDDからの応答性を高めます。
EVGA Z68 は標準にシリアル ATA (SATA) 6 Gb/sとUSB 対応周辺機器への高速接続が可能な USB 3.0を搭載、高度な機能を備えたマザーボードを自由にコントロールしてください。
EVGAのZ68ボードが選ばれる理由
機能の多さだけでなく、オーバークロック耐性の高さで有名なEVGAのマザーボードですが、今回リリースされたZ68マザーボードは、好評判のEVGA P67製品を基にデザイン・開発されております。 ここで、EVGAのマザーボードを選択されたユーザーの声を聞いてみましょう。
「今回（ASUS製 P67）Sabertooth から （EVGA製 P67）FTWから乗り換えたけど、非常に満足している」―dmbatch
「このボードの開発に相当な時間と労力が注がれたのが伺える。見た目はもちろんだが、BIOSも良い」―DJ Ray
それでは専門家の声はどうでしょう。（Overclockers Tech）
「EVGA P67 FTWの性能を超えるようなP67マザーボードはなかなか無いだろう」
EVGA Z68 Features:
-
Bonus Storage (Z68 FTW)
Integrated Flash Storage
Use as storage, swap file, anything! -
12 Phase PWM (Z68 FTW)
Pulse Width Modulator
Cleanest possible variable power switching -
EVGA Vdroop Control
What you see is what you get
Set your voltage in the BIOS and this is what you will get under load booted in your OS -
EVGA Dummy OC
Overclock at the touch of a button
Automatically overclock your system with one simple setting in the BIOS -
EVGA E-LEET Tuning Utility
Overclock your motherboard from inside your OS
Use E-LEET to test your OC settings without having to constantly restart into your BIOS -
EVGA EZ Voltages read points
Simple voltage points
Easily read voltage levels using a voltmeter with several dedicated read points -
Onboard Clear CMOS, Power and Reset Buttons
System essentials at the touch of a button
Troubleshooting and bench booting are simple with these controls -
300% More Socket Gold + Low ESR/ESL Film Cap (Z68 FTW)
Socket bling
The highest quality materials means you will get the absolute cleanest power to the CPU -
Onboard CPU Temp Monitor
Monitor your temps quickly and easily
Accurately and instantly see your CPU temperature once your system has completed POST without any other software. -
Passive Chipset Heatsink
No fans: lower noise and longer lifespan
More than enough cooling wattage to keep those chips well within specs -
Triple BIOS Support (Z68 FTW)
Backup, compare and more!
No matter what you do to one BIOS, you will always have two more backups instantly available -
Solid State Capacitors
Higher quality, longer lifespan
These high quality 100% solid state capacitors will just keep going and going -
EVGA ECP Support
External debugging
You never again have to open your case to see your debug code, disable PCIe jumpers and overclocking options too -
PCIe Disable Jumpers (Z68 FTW)
Instantly troubleshoot
Test a multi-card system instantly and water cooling systems without having to disassemble the loop

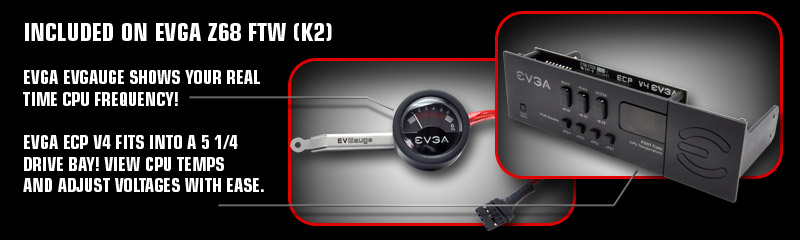

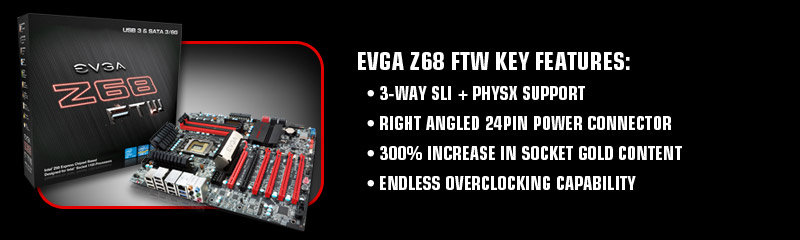

EVGA Z68 FTW w/ EVGauge and ECP V4
- Part Number: 160-SB-E689-K2
- CPU Support: Intel Socket 1155
- Chipset: Intel Z68
- Memory Support: Dual Channel DDR3
- SLI Support: 2-way & 3-way SLI + PhysX
- SATA Header: 4 x SATA II, 2 x SATA III/6G
- SATA Type: 3G/6G
- USB Ports: 12
- PCIE Slot: 5 x PCI-E x8/x16, 1 x PCI-E x1
- Integrated LAN: 2 x 10/100/1000
- Product Warranty: 3 Year warranty

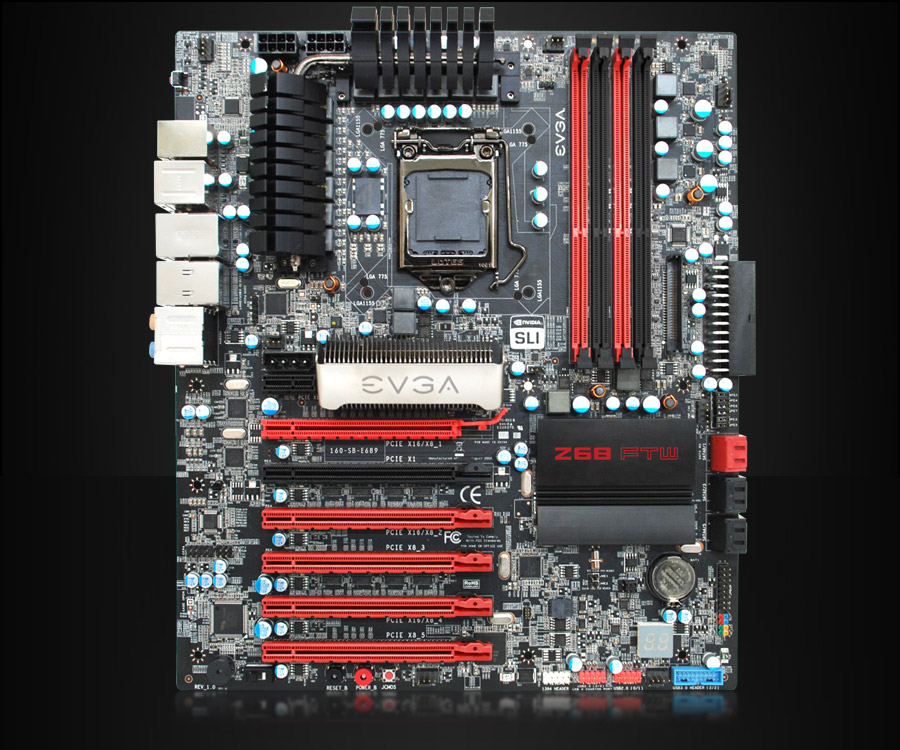

EVGA Z68 FTW
- Part Number: 160-SB-E689-KR
- CPU Support: Intel Socket 1155
- Chipset: Intel Z68
- Memory Support: Dual Channel DDR3
- SLI Support: 2-way & 3-way SLI + PhysX
- SATA Header: 4 x SATA II, 2 x SATA III/6G
- SATA Type: 3G/6G
- USB Ports: 12
- PCIE Slot: 5 x PCI-E x8/x16, 1 x PCI-E x1
- Integrated LAN: 2 x 10/100/1000
- Product Warranty: 3 Year warranty

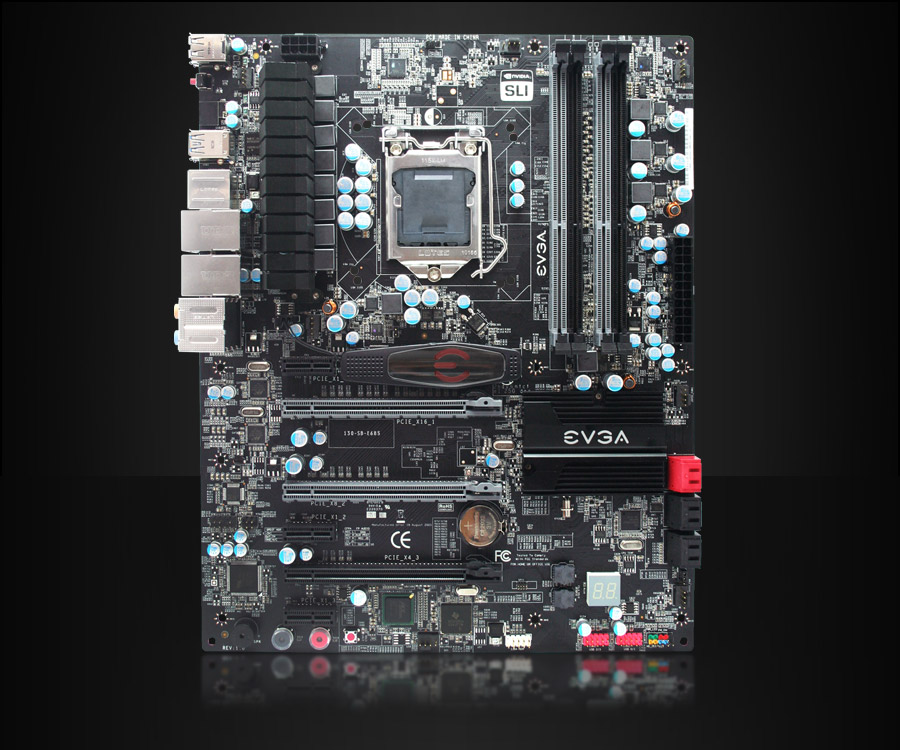

EVGA Z68 SLI
- Part Number: 130-SB-E685-KR
- CPU Support: Intel Socket 1155
- Chipset: Intel Z68
- Memory Support: Dual Channel DDR3
- SLI Support: 2-way SLI + PhysX
- SATA Header: 4 x SATA II, 2 x SATA III/6G
- SATA Type: 3G/6G
- USB Ports: 12
- PCIE Slot: 2 x PCI-E x8/x16, 1 x PCI-E x4, 2 x PCI-E x1
- Integrated LAN: 2 x 10/100/1000
- Product Warranty: 3 Year warranty

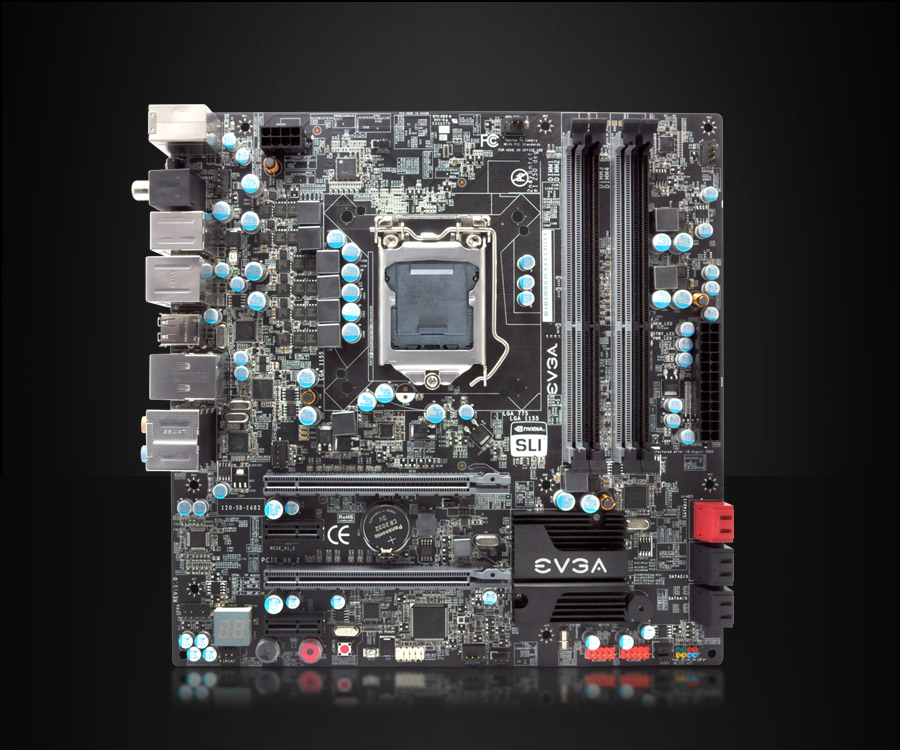

EVGA Z68 SLI Micro
- Part Number: 120-SB-E682-KR
- CPU Support: Intel Socket 1155
- Chipset: Intel Z68
- Memory Support: Dual Channel DDR3
- SLI Support: 2-way SLI
- SATA Header: 4 x SATA II, 2 x SATA III/6G
- SATA Type: 3G/6G
- USB Ports: 14
- PCIE Slot: 2 x PCI-E x8, 2 x PCI-E x1
- Integrated LAN: 2 x 10/100/1000
- Product Warranty: 3 Year warranty
