EVGA SuperNOVA 650 G1, 80+ GOLD 650W, Fully Modular, 10 Year Warranty, Includes FREE Power On Self Tester Power Supply 120-G1-0650-XR

產品型號: 120-G1-0650-XR

查看規格表
下載說明書
  • EVGA SuperNOVA 650 G1, 80+ GOLD 650W, Fully Modular, 10 Year Warranty, Includes FREE Power On Self Tester Power Supply 120-G1-0650-XR (120-G1-0650-XR) - Image 1
  • EVGA SuperNOVA 650 G1, 80+ GOLD 650W, Fully Modular, 10 Year Warranty, Includes FREE Power On Self Tester Power Supply 120-G1-0650-XR (120-G1-0650-XR) - Image 2
  • EVGA SuperNOVA 650 G1, 80+ GOLD 650W, Fully Modular, 10 Year Warranty, Includes FREE Power On Self Tester Power Supply 120-G1-0650-XR (120-G1-0650-XR) - Image 3
  • EVGA SuperNOVA 650 G1, 80+ GOLD 650W, Fully Modular, 10 Year Warranty, Includes FREE Power On Self Tester Power Supply 120-G1-0650-XR (120-G1-0650-XR) - Image 4
  • EVGA SuperNOVA 650 G1, 80+ GOLD 650W, Fully Modular, 10 Year Warranty, Includes FREE Power On Self Tester Power Supply 120-G1-0650-XR (120-G1-0650-XR) - Image 5
  • EVGA SuperNOVA 650 G1, 80+ GOLD 650W, Fully Modular, 10 Year Warranty, Includes FREE Power On Self Tester Power Supply 120-G1-0650-XR (120-G1-0650-XR) - Image 6
  • EVGA SuperNOVA 650 G1, 80+ GOLD 650W, Fully Modular, 10 Year Warranty, Includes FREE Power On Self Tester Power Supply 120-G1-0650-XR (120-G1-0650-XR) - Image 7
  • EVGA SuperNOVA 650 G1, 80+ GOLD 650W, Fully Modular, 10 Year Warranty, Includes FREE Power On Self Tester Power Supply 120-G1-0650-XR (120-G1-0650-XR) - Image 8

*照片上顯示的配件如有變更不另行通知。

Average Rating

 Review It



EVGA 650 Watts 電源供應器 產品型號 Efficiency ECO Mode Modular Warranty +12V Rail Rating Fan Size Japanese Capacitors Performance
EVGA 650 GQ, 80+ GOLD 650W, Semi Modular, EVGA ECO Mode, 5 Year Warranty, Power Supply 210-GQ-0650-V3 (UK) 210-GQ-0650 Gold Yes Semi-Modular 5 Year(s) 54A 135mm 100% 4
EVGA 650 GQ, 80+ GOLD 650W, Semi Modular, EVGA ECO Mode, 5 Year Warranty, Power Supply 210-GQ-0650-V2 (EU) 210-GQ-0650 Gold Yes Semi-Modular 5 Year(s) 54A 135mm 100% 4
EVGA 650 GQ, 80+ GOLD 650W, Semi Modular, EVGA ECO Mode, 5 Year Warranty, Power Supply 210-GQ-0650-V1 210-GQ-0650 Gold Yes Semi-Modular 5 Year(s) 54A 135mm 100% 4
EVGA 650 GD Power Supply 100-GD-0650 Gold No No 5 Year(s) 54A 120mm Main PCB 7
EVGA SuperNOVA 650 G+, 80 Plus Gold 650W, Fully Modular, FDB Fan, 10 Year Warranty, Includes Power ON Self Tester, Power Supply 120-GP-0650-X4 120-GP-0650 Gold No Full 10 Year(s) 54A 135mm 100% 8


Ready for 4th Generation Intel Core Processors (C6/C7 Idle Mode)

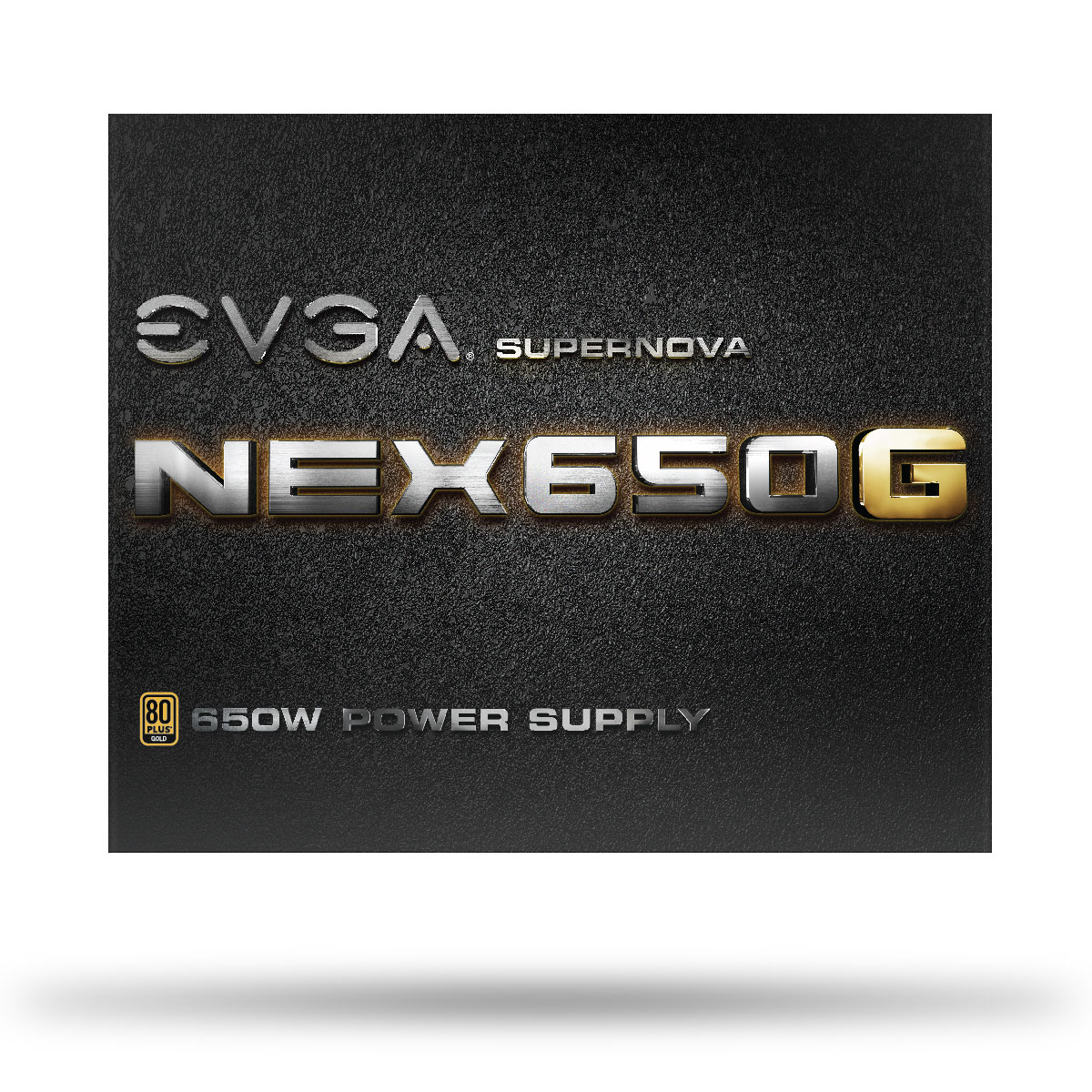

The EVGA� SuperNOVA NEX750 and NEX650 Power Supplies are here in both Gold and Bronze rated options. Designed with enthusiast needs in mind the NEX series is the best choice to power next generation enthusiast computers. Combining 750W or 650W of continuous power with exceptional performance, stunning efficiency, and cutting-edge design and features, the NEX series power supplies are what you need to take your system to the next level.

NOTE: For power supplies purchased in Europe, a European style power cable will be provided.

Learn more here

Cable Length

ATX Cable 1x 600mm
EPS Cable 1x 600mm , 1x 750mm
PCIE Cable 2x 600mm, 2x 750mm
SATA Cable 1x 450mm, 550mm, 650mm , 2x 550mm, 650mm, 750mm
Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm , 1x 550mm, 650mm, 750mm +850mm (Floppy)
Floppy Adapter NA
AC Power 1x 1800mm
Modular Cable Type Full

Connector Quantity

24 Pin ATX 1x
EPS (CPU) 2x 8pin (4+4)
PCIE 4x 8pin (6+2)
SATA 9x
Four-Pin Peripheral 6x
Floppy 1x

Power Specs

AC Input 100 - 240 VAC, 10-5A, 50 - 60 Hz
Rail +3.3V +5V +12V1 / +12V2 / +12V3 / +12V4 +5Vsb -12V
Max Output 25A 25A 53A (4 +12V Rails) 3A 0.8A
53A
150W 636W 15W 9.6W
Total 650W @ +50C

Additional Details

工作溫度範圍 0° to 50° C
Japanese Capacitors Main PCB
ECO Mode No
MTBF 100,000 Hours
淨重 6 lbs
Size 85mm (H) x 150mm (W) x 180mm (L)
Approvals CB, CE, FCC, RCM, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
風扇尺寸 / 軸承 135mm Double Ball Bearing

產品保固

This product comes with a 10 year limited warranty with registration.
EVGA offers several warranty solutions for our customers to choose from. Please refer to the suffix of the part number and our Warranty Terms for details.

Please click a link below to see more information.

NOTE: Only links with More Info will display information.

    • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
    • Fully Modular to reduce clutter and improve airflow
